Excavators

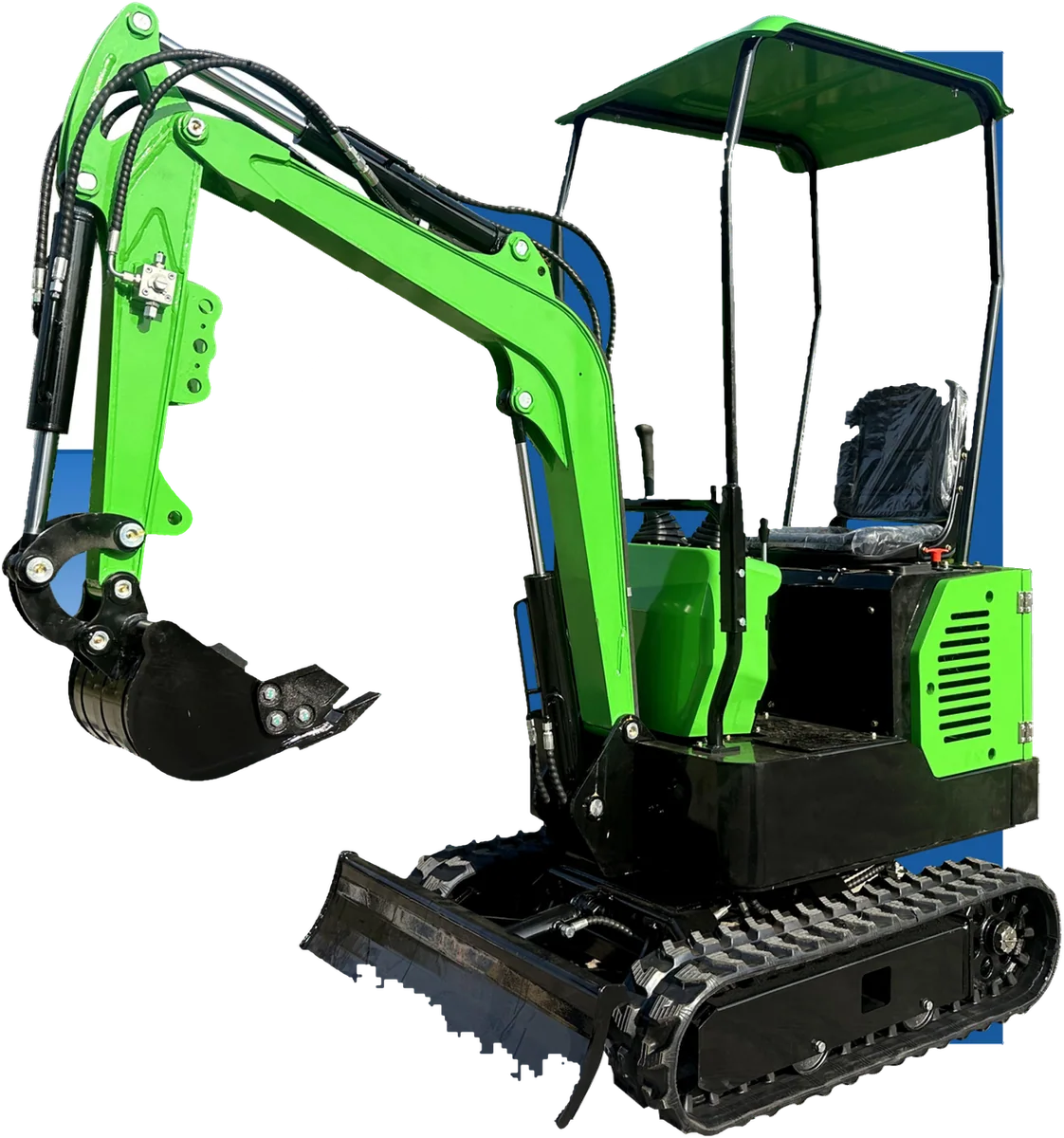

YH12X

At 0.7 t, the YH12X pairs a KOOP192F diesel engine with a rated power of 7.6 kW at 3,000 rpm.

Operating Weight (kg)670
Rated Power (kW/rpm)7.6/3000
Bucket Capacity (m³)0.02
Max. Digging Depth (mm)1700

Request a quote Full specifications

Specifications

Figures as published in the YHONG product catalogue. Configurations vary by market; confirm the final specification on your quotation.

YH12X specifications
Engine Model	KOOP192F
Power Type	Single-cylinder/Four-stroke/Air-cooled/Vertical
Fuel Type	Diesel
Displacement (cc)	499
Rated Power (kW/rpm)	7.6/3000
Horsepower (HP)	10.3
Fuel Tank Capacity (L)	5.5
Overall Dimensions (mm)	2140/3502 × 930 × 2170
Operating Weight (kg)	670
Bucket Capacity (m³)	0.02
Track Ground Contact Length (mm)	1000
Track Width (mm)	180
Max. Digging Depth (mm)	1700
Max. Dumping Height (mm)	1550
Max. Digging Height (mm)	2520
Max. Digging Radius (mm)	3000
Gradeability (°)	30
Travel Speed (km/h)	0-3
Bucket width (mm)	400

Where the YH12X works

It is suitable for mountain land reclamation, indoor decoration demolition, orchard ditch digging and weeding, greenhouse soil turning and planting, rural sewer dredging, etc.

Landscaping and garden design
Utility and service trenching
Footing and foundation excavation
Drainage and French drain work
Pool and patio preparation
Rental fleet general hire
Interior and basement work
Demolition and site clearance

Optional equipment

Engine optional:youpmot 192 (China II) Optional configurations: four legged shed, driver's cab, large arm side swing, chassis extension and retraction
