Excavators

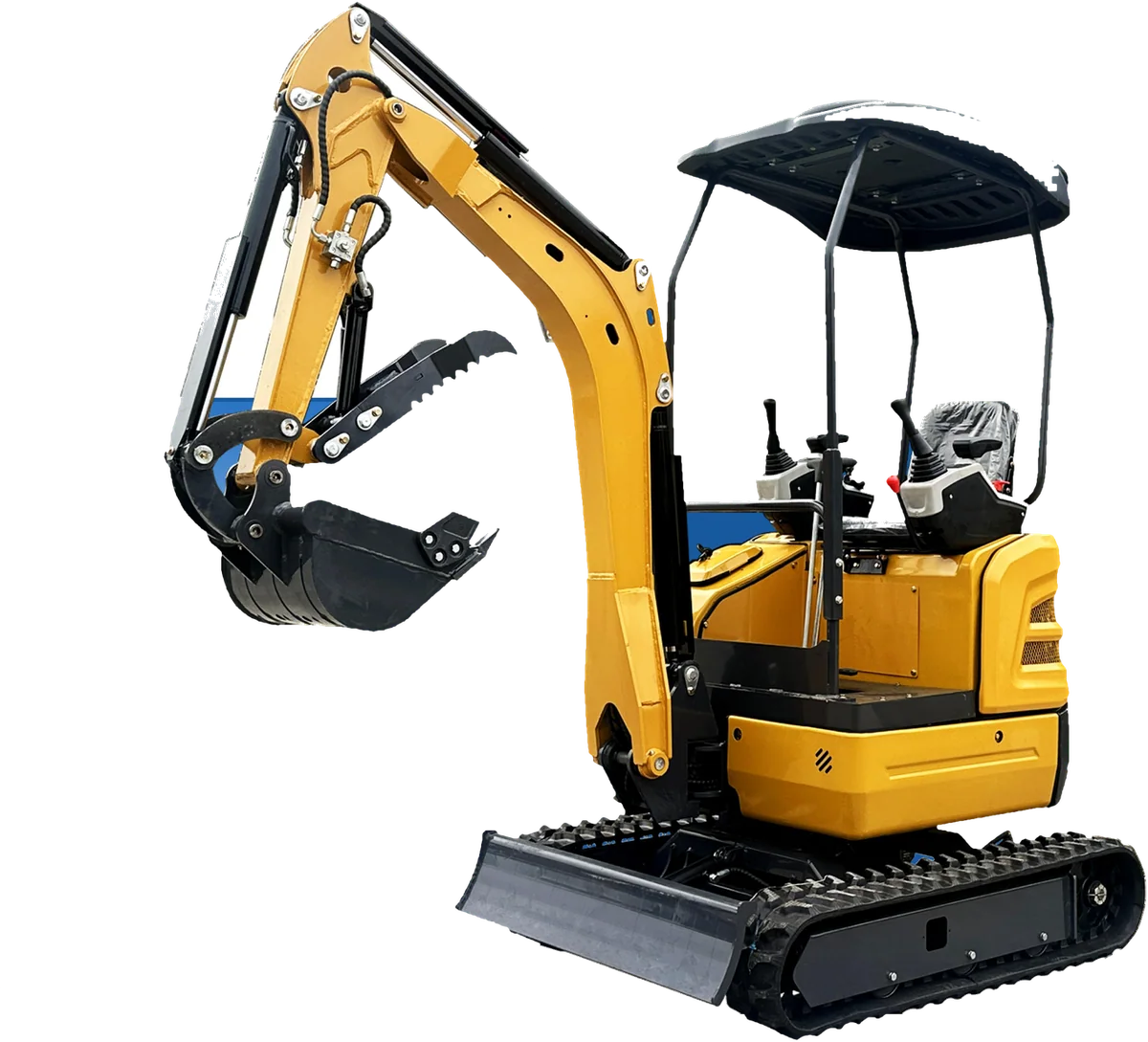

YH20
At 1.4 t, the YH20 pairs a LaiDong 385 diesel engine with a 0.05 m³ bucket and a 2,200 mm digging depth.
- Operating Weight (kg)1400
- Rated Power (kW/rpm)18.4/2400
- Bucket Capacity (m³)0.05
- Max. Digging Depth (mm)2200
Specifications
Figures as published in the YHONG product catalogue. Configurations vary by market; confirm the final specification on your quotation.
| Engine Model | LaiDong 385 |
|---|---|
| Power Type | Three-cylinder/In-line/Water-cooled/Four-stroke |
| Fuel Type | Diesel |
| Displacement (cc) | 1600 |
| Rated Power (kW/rpm) | 18.4/2400 |
| Horsepower (HP) | 25 |
| Fuel Tank Capacity (L) | 12 |
| Overall Dimensions (mm) | 2400/4500 × 1200 × 2470 |
| Operating Weight (kg) | 1400 |
| Bucket Capacity (m³) | 0.05 |
| Track Ground Contact Length (mm) | 1300 |
| Track Width (mm) | 200 |
| Max. Digging Depth (mm) | 2200 |
| Max. Dumping Height (mm) | 1700 |
| Max. Digging Height (mm) | 3000 |
| Max. Digging Radius (mm) | 3700 |
| Gradeability (°) | 30 |
| Travel Speed (km/h) | 0-3 |
| Bucket Digging Force (kN) | 20 |
Where the YH20 works
It is suitable for mountain land reclamation, municipal engineering, landscaping, water and electricity installation, rural sewer dredging, etc.
- Landscaping and garden design
- Utility and service trenching
- Footing and foundation excavation
- Drainage and French drain work
- Pool and patio preparation
- Rental fleet general hire
- Interior and basement work
- Demolition and site clearance
Optional equipment
Engine optional: Kubota D902. Optional configurations: cab, boom side swing, chassis extension and retraction
Quotation
Request a price for the YH20.
Tell us the application, the site conditions and the destination port. We will reply with the recommended configuration, lead time and price.
- Reply within one business day
- Attachments and engine options quoted separately
- Spare parts kit available with the machine
Prefer email or phone? huangwenqiu@chinayonghong.cn · +86 166 7890 0362
