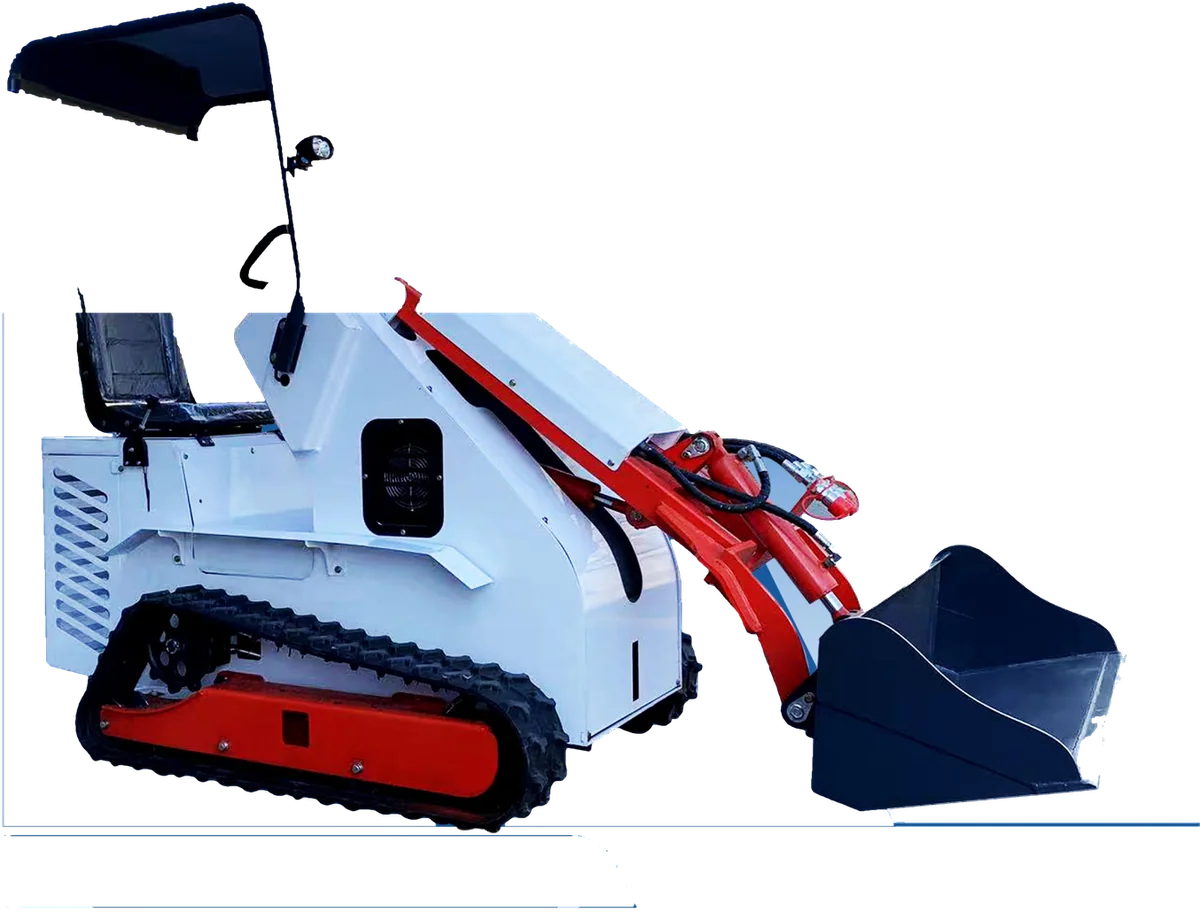

ME290-crawler
At 0.8 t, the ME290-crawler combines a Runtong 420 engine with a 1,882 mm maximum working height and a maximum power of 8.5 kW.
- Bucket capacity (m³)0.09
- Maximum power (kW)8.5
- Engine model and brandRuntong 420
- Maximum horsepower (ps)11.5
Specifications
Figures as published in the YHONG product catalogue. Configurations vary by market; confirm the final specification on your quotation.
| Engine model and brand | Runtong 420 |
|---|---|
| Maximum horsepower (ps) | 11.5 |
| Maximum power (kW) | 8.5 |
| Maximum speed (rpm) | 3600 |
| Main pump type/model | 06+06 Gear Pump |
| Main pump brand | Tianjin Walk |
| Rated pressure (MPa) | 22 |
| Multiway valve | Two Sets of (3+2)Manual Valves |
| Working weight (kg) | 750 |
| Bucket capacity (m³) | 0.09 |
| Low/high speed (Km/h) | 0-6 |
| Climbing ability (%) | 25 |
| Maximum lift (kg) | 200 |
| Maximum working height C (mm) | 1882 |
| Max unloading height A (mm) | 1520 |
| Bucket discharge Angle L | 33° |
| Total length J/K (mm) | 2500 |
Quotation
Request a price for the ME290-crawler.
Tell us the application, the site conditions and the destination port. We will reply with the recommended configuration, lead time and price.
- Reply within one business day
- Attachments and engine options quoted separately
- Spare parts kit available with the machine
Prefer email or phone? huangwenqiu@chinayonghong.cn · +86 166 7890 0362
