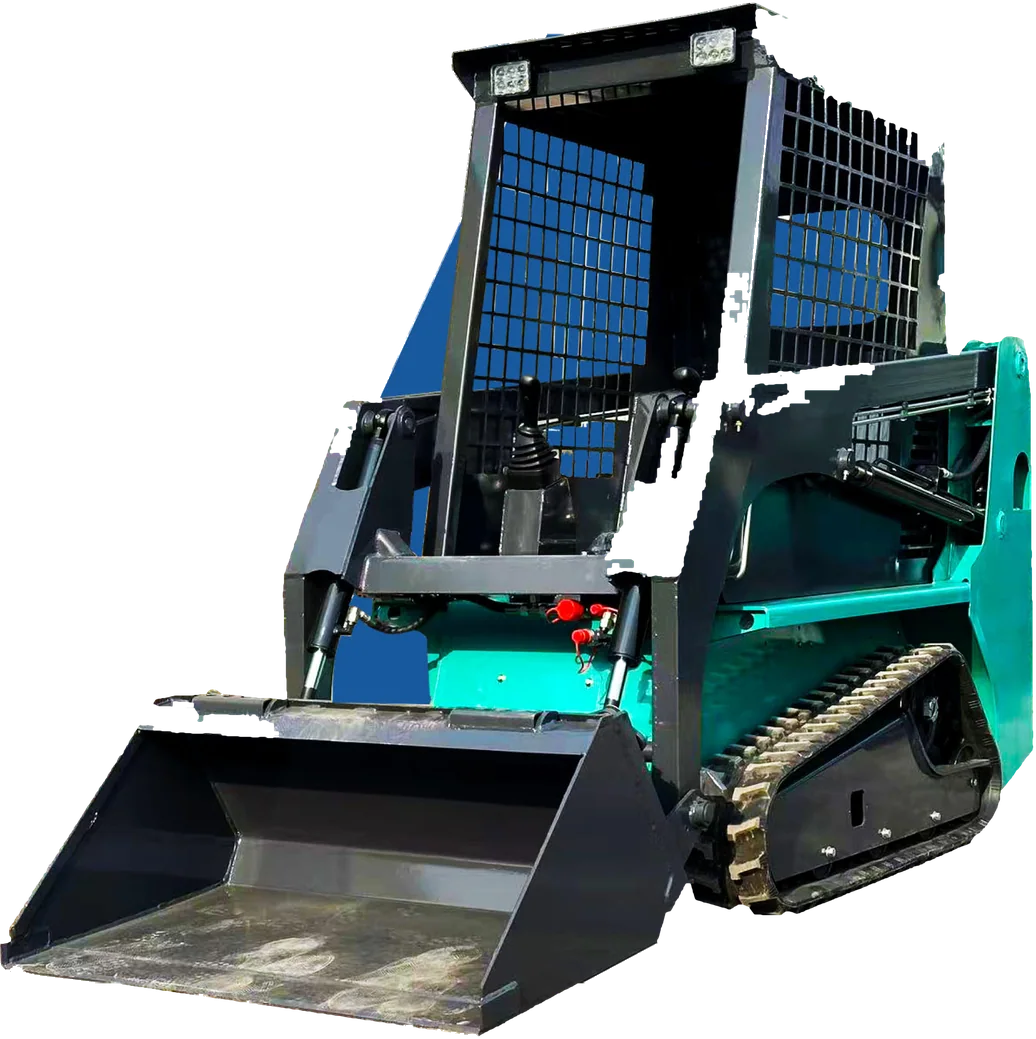

ME35-crawler
At 2.4 t, the ME35-crawler combines a Runtong 825D gasoline engine with a 1,959 mm maximum dumping height and a 3,019 mm maximum working height.
- Operating Weight (kg)2400
- Overall Dimensions (mm)2660 × 910 × 1810
- Engine Model825D
- Maximum Horsepower (ps)32.6
Specifications
Figures as published in the YHONG product catalogue. Configurations vary by market; confirm the final specification on your quotation.
| Operating Weight (kg) | 2400 |
|---|---|
| Engine Brand | Runtong |
| Engine Model | 825D |
| Maximum Horsepower (ps) | 32.6 |
| Multi-way Valve | 5-way Multi-way Valve |
| Main Pump Brand | Tianjin Travel |
| Overall Dimensions (mm) | 2660 × 910 × 1810 |
| Fuel Type | Gasoline |
| Hydraulic Tank Capacity (L) | 25 |
| Fuel Tank Capacity (L) | 25 |
| Multi-way Valve Brand | Taiheng |
| Main Pump Type/Model | PGP5123GLP |
| Maximum Working Height (mm) | 3019 |
| Maximum Dumping Height (mm) | 1959 |
| Travel Mode | tracked |
| Engine Oil Capacity (L) | 2.4 |
| Upper Frame Width (mm) | 650 |
| Travel Motor Brand | Ruili |
| Motor Displacement | 375 |
Quotation
Request a price for the ME35-crawler.
Tell us the application, the site conditions and the destination port. We will reply with the recommended configuration, lead time and price.
- Reply within one business day
- Attachments and engine options quoted separately
- Spare parts kit available with the machine
Prefer email or phone? huangwenqiu@chinayonghong.cn · +86 166 7890 0362
